Exporting image services in MapInfo

Release 9.3
Last modified June 25, 2010
E-mail This Topic Printable Version Give Us Feedback



About exporting imagery from an image service in MapInfo

The image data you receive as a client from an image service can be exported as a raster dataset and saved on your local system. You may need to save this data to use it in analysis applications. You cannot export the raw data used to create the service; you can only export the data you receive as a client—that is, the processed raster data. You can save this data into TIFF, JPEG 2000, and JPEG file formats.


Export Image Properties


Field Description
Set the extent to
  • Current View Extent—The current visible extent of the image service.
  • Default Extent of Image Service—The bounding extent of the image service.
  • Custom Extent—User-defined extents.
  • Selected Graphic's Extent—This option is displayed only if a graphic defining the area of extent is marked on the screen (map) (using graphics on the Drawing toolbar) and it is kept selected before bringing up the Export Image Properties dialog box. If you have too many graphics selected, the extent is a union of all graphics.
Extents
  • Top—Topmost y-coordinate of the set extent.
  • Left—Leftmost x-coordinate of the set extent.
  • Right—Rightmost x-coordinate of the set extent.
  • Bottom—Bottommost y-coordinate of the set extent.
Width Width of the exported image, expressed in the units of the data frame.
Height Height of the exported image, expressed in the units of the data frame.
Columns Number of columns of pixels in the exported image.
Rows Number of rows of pixels in the exported image.
Ground Pixel Size X Size of pixels at ground level in the x direction.
Ground Pixel Size Y Size of pixels at ground level in the y direction.
Format Format of the exported image. You can choose TIFF/TFW no compression, TIFF/TFW-JPEG, TIFF/TFW-LZ77, JPEG, JP2, and PNG.
Tile Size Size of internal tiles in the exported image for TIFF images only.
Compression Quality Quality of compression. A compression quality of 100 percent is the best
Approx. MB Approximate size of the image in megabytes. This is a read-only field.
File Name Path and name of the exported image. By default, the name is "Untitled".


How to export image service data in MapInfo

  1. Add an image service.
  2. Click the Image Service Manager button Image Service Manager button on the ArcGIS Image Server toolbar to display the Image Service Manager dialog box.
  3. Click the Properties button Image Service Properties button to display the Service Properties dialog box.
  4. Click the Export button to open the Export Image Properties dialog box.
  5. Type values or use the drop-down lists in the required fields on the Export Image Properties dialog box.

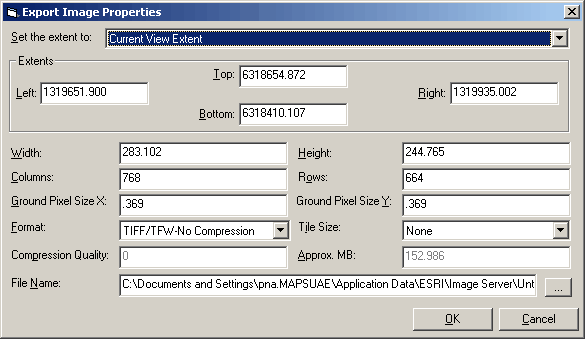

  6. Export Properties dialog box

  7. Click OK.
  8. Browse to the location specified in the File Name text box to view the exported image service.
