Setting the advanced serial port parameters
Release 8 E-mail This Topic Printable Version Give Us Feedback

  1. Tap the Serial Port Parameters button on the GPS page of the GPS Preferences dialog box, to open the Serial Port Parameters dialog box.

    The Port and Baud rate selected in the GPS page will automatically be selected in the Serial Port Parameters dialog box.

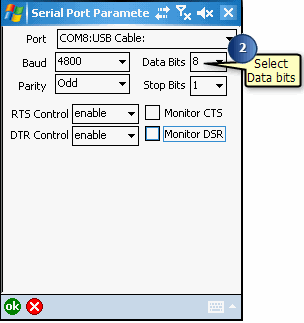

  2. Tap the Data Bits drop-down arrow to select the number of data bits used by your GPS to output data.

  3. Set the remaining communication parameters to match the settings on your GPS receiver.

    Note:  Refer to ArcPad Reference Guide for more information on the fields in the GPS Preferences and Serial Port Parameters dialog boxes.
