Working with attributes
Release 8 E-mail This Topic Printable Version Give Us Feedback

Attributes for features in shapefiles and ArcPad AXF files are displayed in the Feature Properties dialog box. For new features, the Feature Properties dialog box is automatically displayed once the geometry of the new feature has been captured. For existing features, the Feature Properties dialog box can be displayed by selecting the feature and then either tapping the Feature Properties button on the Edit toolbar, or double-tapping the selected feature.

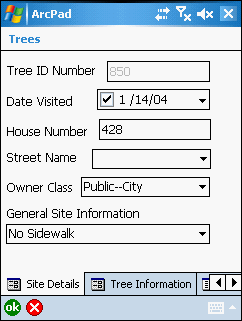

The Feature Properties dialog box will, by default, contain the Attributes, Picture, Symbology, and Geography pages. However, if a custom edit form exists for the particular layer then this form will be displayed as the first page, or pages, of the Feature Properties dialog box. The custom form designer may choose to hide any of the default pages. The example below shows a custom edit form with two custom pages: Site Details, and Tree Information. The name of the Feature Properties dialog box has also been renamed, to ‘Trees’, by the form designer.

You can create custom forms for shapefile and ArcPad AXF layers by using ArcPad Studio. These custom forms allow you to display attributes using common form controls—for example, text boxes, combo boxes, and check boxes—and incorporate additional data validation and initialization of attributes.

The first page of the Feature Properties dialog box is the parent page. The parent page will either be the first page of a custom form, or the Attributes page if no custom form exists. All other pages of the Feature Properties dialog box are considered child pages. Each child page has an Up button located next to the OK and Cancel buttons. Tapping the Up button jumps to the parent page.

The Attributes page is used to display and edit the attributes and associated values of the selected feature. When accessed via the Identify tool, all values are read only. When accessed via the Feature Properties tool—or by double-tapping a feature with the Select tool—all values are read/write. An attribute that is used to define the symbology of the layer is displayed in red.

Attributes page for shapefile features

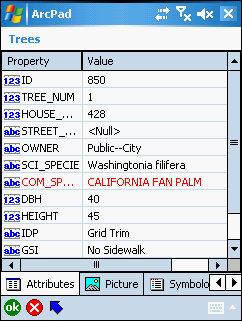

The Attributes page for shapefile features has two columns: Property and Value. The Property column corresponds to the field, or column, in the dBase table associated with the shapefile. The value column contains the value of the associated field or column. Tapping the value opens an edit box for editing the value entry.

With shapefiles, validation of the data entered is limited to adherence to the definition of the field or property. For example, ArcPad will not allow text characters to be entered into a field which has been defined as numeric. Additional validation can also be performed via custom forms and, in some cases, scripts.

Attributes page for ArcPad AXF features

The Attributes page for ArcPad AXF features has two columns: Property and Value. ArcPad AXF files support viewing and editing of related tables. The Attributes page for AXF features will also include a row for each relationship (or related table) that has been defined for the AXF feature layer.

Primary related tables, i.e tables that have a direct relationship with the attribute table, are indicated by a single Down button.

Secondary related tables, i.e. tables that have a relationship with a primary related table, are indicated by a double Down button. The double Down button arrows indicate that the relationship is two-levels down, for example LightInspections are related to Lights, which are related to Poles.

The related table row lists the name of the relationship, the number of records (or entries) in the primary related table, and a down button or double Down button to easily nagivate to the Attributes page for the corresponding related table.

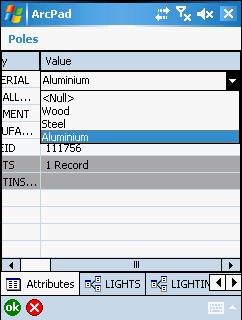

Tapping the value opens an edit box for editing the value entry, or activates a drop-down list to select from pre-defined valid values.

The value field for AXF layers and related tables may include built-in form controls—such as combo boxes (or pick lists)—if subtypes or coded value domains have been defined for the source geodatabase which the AXF layer was extracted from.

Validation of the data in AXF feature tables and related tables takes place at two levels:

  1. Data is validated according to the definition of the field or property. For example, ArcPad will not allow text characters to be entered into a field which has been defined as numeric.
  2. Data is validated according to the database schema that has been defined for the AXF file. For example, a property may be associated with a subtype or coded value domain that limits the valid values to a pre-defined list of valid values—which is presented as a drop-down list of values to select from. Or, a property may be associated with a range domain which, for example, limits the valid values from 1 to 100.

Domains are defined as part of the AXF database schema. The schema can be defined for the geodatabase in ArcCatalog (ArcGIS Desktop). The ArcPad Data Manager for ArcGIS Desktop reads the geodatabase schema and then creates the corresponding schema for the output AXF file. ArcPad Studio can also be used to view the schema for AXF files.

Attributes page for related tables

The attributes page for related tables is similar to the Attributes page, with the following differences:

List view

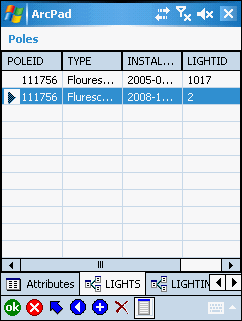

The related table list view consists of a list of records and columns in the table, with one row per record. Rows or records can be added or deleted in the list view, but the record contents cannot be edited.

The list view has the following buttons at the bottom of the page (in addition to the previously described ok, Cancel, and Up buttons):

Moves the selection up one row

Moves the selection down one row

Adds a new row and then automatically switches to the single entry view.

Deletes the selected row

Switches to the single row view.

Single row view

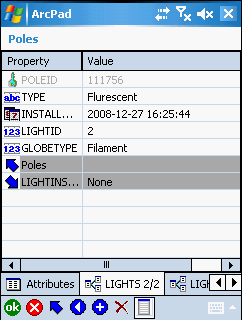

The single row view has two columns: Property and Value. The data can be edited in the single row view. This view also includes rows for the parent table and any secondary related tables. The Up button can be used to easily navigate to the parent table, while the Down button can be used to easily nagivate to any secondary related tables.

Tapping the value opens an edit box for editing the value entry, or activates a drop-down list to select from pre-defined valid values.

The single row view has the following buttons at the bottom of the page:

Moves the selection up one row

Moves the selection down one row

Adds a new row and then automatically switches to the single entry view.

Deletes the selected row

Switches to the single row view.

Selecting attribute values via the Symbology page

The Symbology page is used to view the symbols and labels defined in the ArcPad layer definition. The ArcPad layer file is created in ArcGIS Desktop using the ArcPad Data Manager. ArcPad assigns a random symbol for the layer if there is no symbology defined in the layer file. The symbol used by the currently selected feature is highlighted.

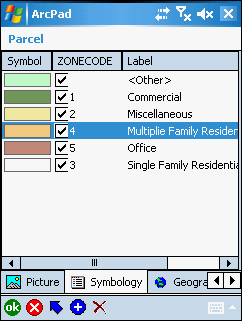

The Symbology page provides a visual method for selecting an attribute value. When a symbol, or category, is selected the associated property value is also selected for the current feature’s attributes. The example below shows the selection of the ZoneCode property equal to a value of 5. The Label text is for display purposes only, and is not saved in the feature’s attributes.

You can add a new category by tapping the button at the bottom of the legend. Each new category consists of a symbol, value, and label. You can also delete a category by selecting the category and tapping the button. Adding or deleting categories changes the symbology, or legend, used to display the features in the associated feature layer—adding or deleting categories has no impact on the attributes saved with features.
