Creating a polygon feature using the Polygon tool and the pen |
|
Release 8 |
The vertices are drawn with a blue box, and a line joins the vertices.
Continue to tap the map to capture additional vertices.

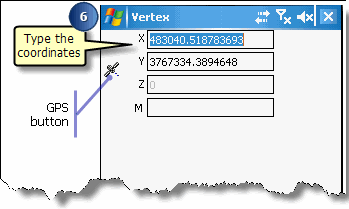

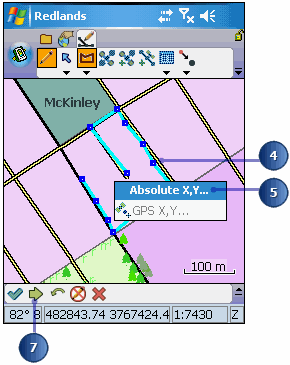

Go to Step 7 to complete the capture of the new polygon feature, or continue to Step 4 to use the capture menu to add more vertices.
ArcPad will automatically close the polygon by adding a final vertex with the same coordinates as the first vertex.

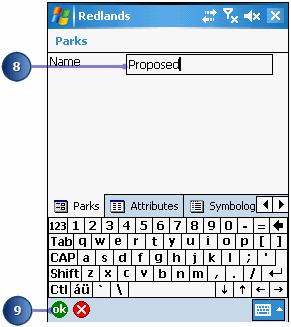

The Feature Properties dialog box or custom edit form is automatically displayed after the new polygon feature has been created.
Tapping the X button cancels the creation of your new feature.
